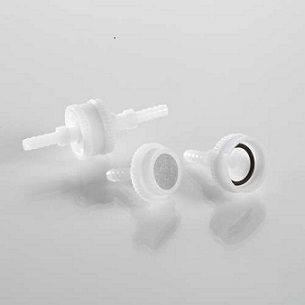

Lightweight Filter Holder for Particulate Sampling

• Domed inlet provides uniform sample distribution on the filter.

• Delrin plastic offers broad chemical compatibility and material strength.

• Accepts 25 mm filter discs.

• Lightweight for venting and air monitoring applications.

• Useful for low pressure, in-line air cleaning, liquid filtering, or sampling applications.

• Can be easily incorporated into liquid- or gas-carrying tubing systems at the point of use.

Materials of Construction

• Body: Delrin (acetal resin)

• Hose Barb Adapters: Nylon

• O-Ring: Viton◆

• Support Screen: Type 316 stainless steel

Effective Filtration Area

• 3.7 cm2

Dimensions

• Overall Length: 2 cm (0.8 in.)

• Diameter: 3.5 cm (1.4 in.)

Inlet/Outlet Connections

• 1⁄8 in. FNPT; hose barb adapter accepts 6.4 mm (1⁄4 in.) ID tubing

Maximum Operating Temperature

• In Water: 66 °C (151 °F)

• In Air: 85 °C (185 °F); will perform effectively with intermittent use up to 121 °C (250 °F)

Maximum Operating Pressure

• 2.8 bar (280 kPa, 40 psi)

Sterilization

• Provided non-sterile. Autoclavable if desired at 121 - 123 ºC (250 - 253 ºF) at 1.0 bar (100 kPa, 15 psi) for 15 - 20 min .
