Excellent for Use In High Throughput, Sample Prep Applications

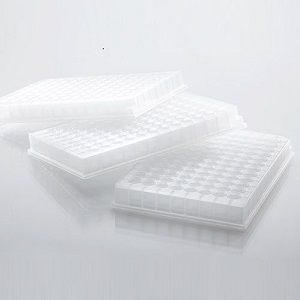

• Plates are constructed of chemicallyresistant, biologically-inert polypropylene with a clear polystyrene lid.

• Robotic-friendly design has singlepiece construction, designed in accordance with the ANSI/SBS X-2004 standards. Plates are stackable with and without lids.

• Eliminates crosstalk between wells. Membranes are individually sealed in each well with a proprietary sealing process and each well has a fluid director.

• A serialized barcode label allows use in automated tracking systems and identifies the membrane type.

Discontinuation Notice

• Product Discontinuation Notice

• Prefiltration

• Particulate removal

• Cell harvesting

Materials of Construction

• Filter Media: Bio-Inert® (modified low protein-binding Nylon), Omega™ (modified polyethersulfone), PTFE (hydrophobic PTFE), Supor® (hydrophilic polyethersulfone), and Mustang™ Q and S membranes; and glass fiber (borosilicate glass without binder)

• Plate Housing: Polypropylene

• Lid: Polystyrene

Dimensions

• Height: 1.7 cm (0.67 in.) with lid and 1.4 cm (0.6 in.) without lid

• Length: 12.8 cm (5.0 in.)

• Width: 8.6 cm (3.4 in.)

Well Bottom Area

• 0.25 cm2

Maximum Well Volume

• 350 µL

Recommended Maximum Working Volume

• 300 µL

Recommended Operating Vacuum

• 25.4 cm Hg (10 in. Hg) or greater

Filtration by Centrifugation

• 500 - 3,000 x g

Typical Sample Hold-up Volume

• < 14 µL per well
