Description
For 50 L, 100 L, 200 L and 500 L Allegro Single-Use Systems
Allegro plastic totes have been specifically designed and
engineered to provide robust support for single-use systems in
biopharmaceutical fluid management applications.

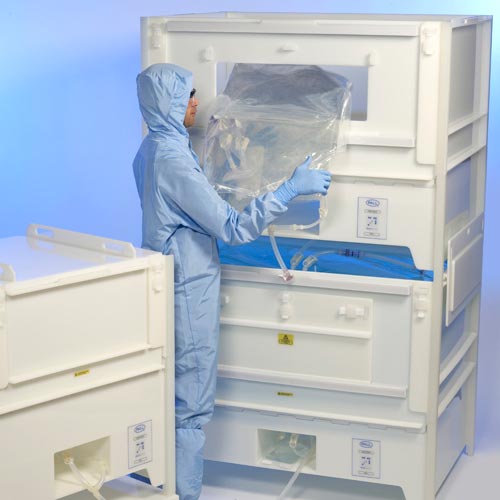

Pall's collapsible plastic Allegro totes enable easy implementation of 50 L,
100 L, 200 L and 500 L single-use systems around each unit operation, while
reducing manufacturing footprint. The Allegro plastic tote has been
specifically engineered in order to provide maximum flexibility in the
processing environment with stackable, maneuverable and collapsible
features.
The tote is made of polypropylene (PP) plastic material, thus providing broad chemical and high thermal resistance as required for clean room utilization. The plastic material also reduces the weight for easy maneuverability. The Allegro plastic tote design is suitable for fork-lift truck transfer, enabling easy movement even when fully loaded.
|
Features |
Benefits |
|
Collapsible design |
Reduced storage space requirements when not in use |
|
Polypropylene construction |
Lightweight and cleanable with a wide variety of agents due to excellent chemical resistance |
|
Stackable |
Can handle 100 L, 200 L or 500 L systems |
|
Available in three different sizes |
No operator intervention during filling for maximum reliability |
|
Ease of use with Allegro 3D biocontainers |
Flexibility in the choice of containers when requested |
|
Usable with other biocontainers |
|
Specifications
Technical Specifications
Materials of Construction
|
Totes |
Polypropylene reinforced with stainless steel |
|
Latch mechanism |
Polypropylene |
|
Hinge |
Polypropylene with stainless steel hinge rod |
|
Accessories - Lids, trolley base and outlet support plate |
Polypropylene |
|
Trolley casters |
Nylon and 304 stainless steel |
Operating Temperature Range
|
-40 °C to 60 ºC |
Stacking Specifications
|
Allegro 200 L plastic totes |
Empty
(closed/collapsed) x 5 |
|
Allegro 500 L plastic totes |
Empty
(closed/collapsed) x 5 |
Note: Totes should not be stacked on trolleys
Table 1
Allegro 50 L Plastic Tote
|
Description |
Allegro 50 L benchtop plastic tote |
|
Part Number |
LGRBPTTE50L |
|
Weight |
13.58 Kg |
|
Maximum Load |
55 Kg |
|
Nominal Dimensions (LXWXH) |
440 x 520 x 485 mm |
|
For Use With |
50 L 3D Allegro
SUS1 |
Used as a stand alone bench top 50 L plastic tote or in conjunction with the Allegro Single-use TFF system as a 50 L feed vessel.
Table 2
Allegro 200 L Plastic Tote and Accessories
|
Description |
Allegro 200 L plastic tote |
Allegro trolley for Allegro 200 L plastic tote |
Allegro port bracket for Allegro 200 L plastic tote |
|
Part Number |
LGRPTTE200L |
LGRPTRL200L |
LGRPFBP200L2 |
|
Weight |
29 Kg |
16.3 Kg |
0.1 Kg |
|
Maximum Load |
700 Kg (3 full Allegro 200 L totes stacked) |
388 Kg |
– |
|
Nominal Dimensions (LxWxH) |
835 x 665 x
900 mm |
855 x 665 x 212 mm |
100 x 106 x 20 mm |
A single port bracket is supplied with each Allegro 200 L plastic tote. Spares are available to order in packs of 5.
Collapsed dimensions
Table 3
Allegro 500 L Plastic Tote and Accessories
|
Description |
Allegro 500 L plastic tote |
Allegro trolley for Allegro 500 L plastic tote |
Allegro port bracket for Allegro 500 L plastic tote |
|
Part Number |
LGRPTTE500L |
LGRPTRL500L |
LGRPFBP500L4 |
|
Weight |
55 Kg |
27.4 Kg |
0.25 Kg |
|
Maximum Load |
1400 Kg (2 full Allegro 500 L totes stacked) |
747.5 Kg |
– |
|
Nominal Dimensions (LxWxH) |
1220 x 870 x
974 mm |
1250 x 870 x 260 mm |
100 x 208 x 20 mm |
