Point of Product
Description

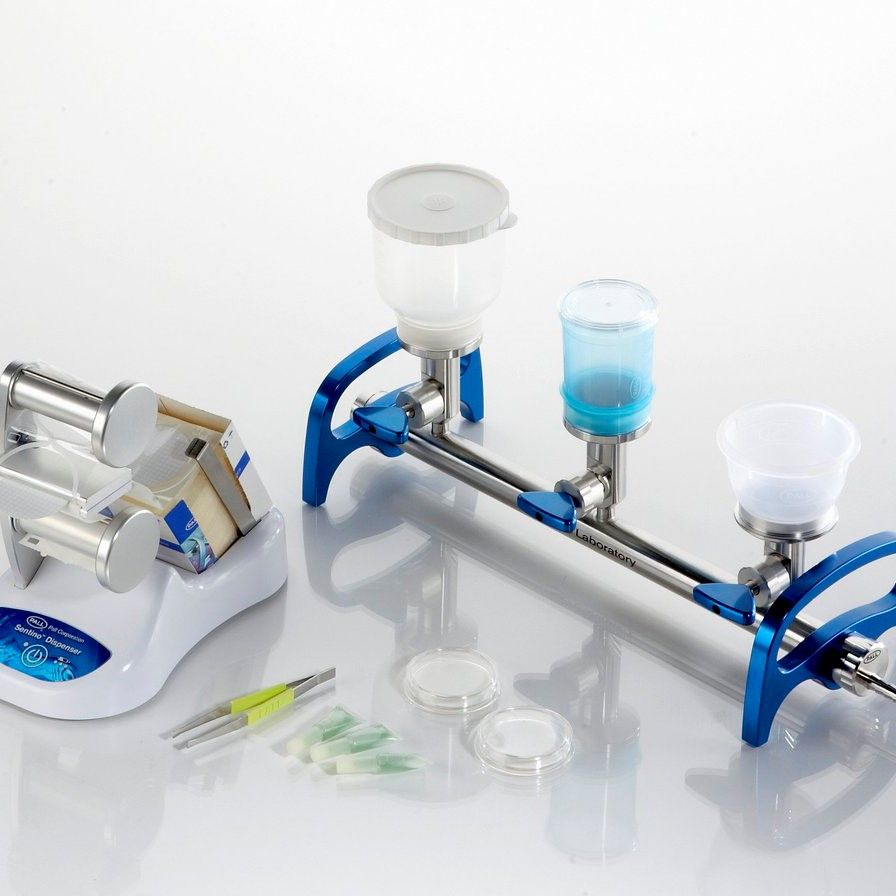

- No more "dirty" manifolds: Microbial cross contamination of your sample is a thing of the past. The manifold is designed to fit most laboratory autoclaves by separating into manageable components.
- Double testing Capacity: A larger manifold is at your reach with just a coupler. Modular design allows two manifolds to combine yielding a standard 6-place manifold which can be easily separated for disinfection and/or sterilization.
- Manifolds that adapt to you: Whether you are right or left handed, setting up your test workflow is second nature. The components interchangeable and designed with a simple slip fit to the manifold.
Specifications
| Autoclavable |
121 - 123 ºC (250-253 ºF) at 1.0 bar (100 kPa, 15 psi) for 15 - 20 minutes |
|
Cylinder, Stem, Lid, Support Screen |
Polyphenylsulfone |
|
Diameter (Imperial in) |
3 in |
|
Diameter (Metric cm) |
7.6 cm |
|
Dimensions (Imperial in) |
9 in |
|
EFA (Effective Filtration Area) |
9.6 |
|
Filter Size |
Accepts 47 mm |
|
Funnel Capacity (Metric mL) |
300 mL |
|
Height (Imperial in) |
9 in |
|
Height (Metric cm) |
22.9 cm |
|
O-ring Material |
Silicone |
|
Sterilization |
UV Sterilizable |
|
Vent Plug Material |
Polypropylene |
Application
-
Bioburden testing of filterable products is performed to determine the number of viable and reproducible microorganisms. By recovering organisms on and in a membrane filter, processing efficiency and the microbial quality of a sample can be evaluated to assure that the product is not harmful to the intended recipient.
-
Detecting spoilage microorganisms are critical for foods and beverages as they may be responsible for the deterioration of sensory qualities (visual, texture, and taste) and may potentially render the product harmful for consumption. Using membrane filtration, detection of these spoilage microorganisms keep contaminated items from reaching the market.
-
Monitoring for compliance to drinking water standards using Membrane Filtration Technique, determines if there are levels of pathogenic microorganisms in treated water or wastewater. These microorganisms include coliforms such as Escherichia coli (E. coli) and Legionella which are both classified as pathogens.
