Filter Cartridge HDC II

Filter HDC II

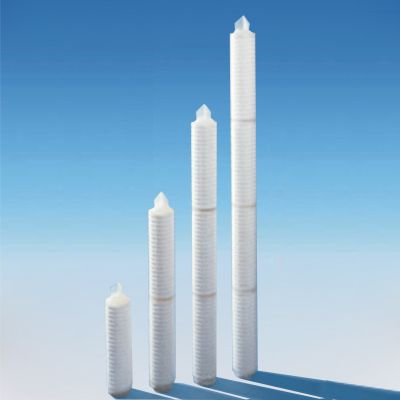

Pall HDC® II all-polypropylene filter cartridges incorporate proprietary HDC II tapered pore polypropylene depth media. The single open-ended (SOE) AB filter cartridge style features a high-area pleated modular element construction designed to fit in sanitary filter housings. HDC II filter cartridges are well-suited for a broad range of fine particle and prefiltration applications where purity, economy and reliability are critical. Typical biopharmaceutical applications include biologicals, pharmaceuticals, fermentation feeds and intermediates, and vaccines.

Specification

Materials of Construction

Medium	Polypropylene
Support and Drainage Layers	Polypropylene
Core,Cage and End Caps	Polypropylene
Adapter (P grade)	Polypropylene with polyetherimide reinforcing ring
O-ring	Silicone 1

Removal Ratings (Liquid)

40 µm, 20 µm, 10 µm, 6 µm, 4.5 µm, 2.5 µm, 1.2 µm, 0.6 µm 3

Nominal Dimensions

Lengths	254 mm (10 in.), 508 mm (20 in.), 762 mm (30 in.), and 1016 mm (40 in.)
Diameter	70 mm (2.75 in.)

Operating Conditions

Maximum Differential Pressure and Temperature 4

5.5 bard (80 psid) to 50 °C

4.1 bard (60 psid) to 80 °C

Autoclaving and Streaming in Situ

Maximum Steam Temperature

Typical Liquid Flow Rate

Ordering Information

SIZE

Type

Cartridge

Grade

Gasket

Code

Nominal Length

Code

Removal Rating

Area

Code

Filter Grade

Code

Gasket Option

10 in.
(254 mm)

J006

0.6 μm

0.63 m2
(6.7 ft)

Double 226 O-ring with baryonet lock and fin end*

Pharmaceutical*

Silicone

20 in.
(508 mm)

J012

1,2 μm

0.70 m2
(7.5 ft)

Omit

General Use

30 in.
(762 mm)

J025

2.5 μm

0.88 m2
(9.5 ft)

40 in.
(1016 mm)

J045

4.5 μm

0.88 m2
(9.5 ft)

J060

6 μm

0.42 m2
(4.5 ft)

J100

10 μm

0.55 m2
(6.0 ft)

J200

20 μm

0.55 m2
(6.0 ft)

J400

40 μm

3.38 m2
(4.0 ft)
