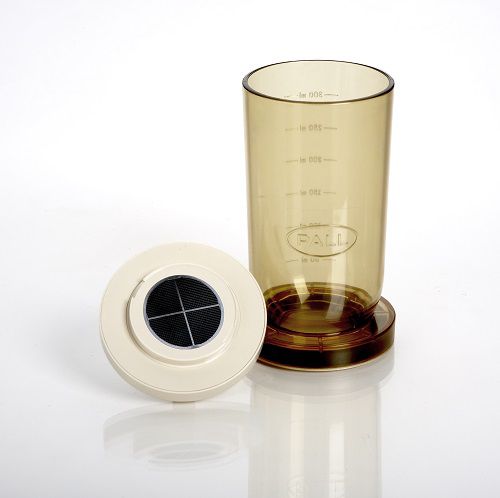

47 mm Magnetic Filter Funnels
Unique magnetic seal allows easy, one-handed vacuum filtration of liquids
Point of Product
Specification
| Materials of Construction | Funnel Body, Stem, Lid Support Screen : Polyphenylsullfone Vent Plugs : Polypropylene |
| Effective Filtration Area | 150 and 300 mL : 9.6 cm2, 35 mm effective diameter 500 mL : 13.1 cm2, 41 mm effective diameter |
| Dimensions | Overall Height : 150 mL : 17.8 cm (7.0 in) 300 mL : 22.9 cm (9 in) 500 mL : 19.6 cm (7.7 in) Maximum Diameter: 150 & 300 mL : 7.6 cm (3 in) 500 mL : 8.9 cm (3.5 in) |
| Filter Size | Accepts 47 mm filter |
| Funnel Capacity | 150, 300, or 500 mL |
| Outlet Connection | Stem fits into standard one-hole stopper |
| Sterilization | Provided non-sterile. Withstands multiple autoclavings at 121-123°C (250 - 253 °F) at 1.0 bar (100 kPa, 15 psi) for 15 - 20 min; UV sterilizable |
Applications
-
Use for the Membrane Filter (MF) Technique.
-
Municipal water treatment testing.
-
Surface water analysis.
-
Plant process water testing.
-
Drinking water analysis.
Ordering Information
47 mm Magnetic Filter Funnels
|
Part
Number
|
Description
|
Pkg
|
|
4247 |
47 mm, 150 mL capacity |
1/pkg |
|
4242 |
47 mm, 300 mL capacity |
1/pkg |
|
4241 |
47 mm, 300 mL capacity, with lid |
1/pkg |
|
4238 |
47 mm, 500 mL capacity |
1/pkg |
|
Part Number
|
Description
|
Pkg
|
|
4235 |
Stainless steel support screen |
1/pkg |
|
87264 |
Support screen, polyphenylsulfone |
1/pkg |
|
4244 |
Base, without support screen |
1/pkg |
|
4246 |
Lid kit (for 300 mL funnel only) |
1/pkg |
|
4248 |
150 mL funnel housing |
1/pkg |
|
4243 |
300 mL funnel housing |
1/pkg |
|
4254 |
500 mL funnel housing |
1/pkg |
