Point of Product
Specification

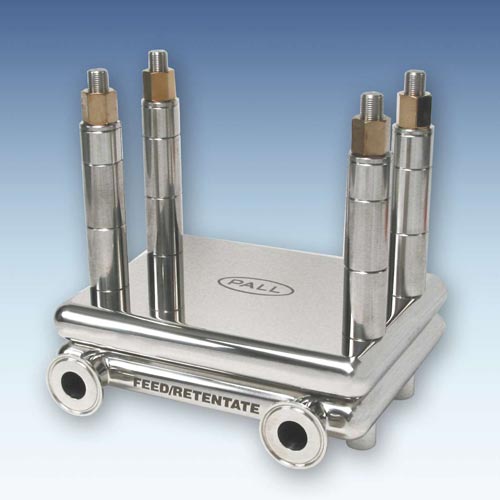

Centramate Cassete Holders
Centrasette Cassete Holders
Centrastak Cassette Holders
Maximate and Maxisette Cassette Holders
Materials of Construction for Wetted Parts
|
Cassette Holder |
Centramate LV Holder |
Centramate PE Holder |
Centramate Holder
|
| Feed and retentate ports |
Female luer SS |
¼ in. NPT Fitting (female) |
½ in. sanitary, 9.6 mm (0.38 in.) bore |
| Filtrate ports |
Female luer SS |
¼ in. NPT Fitting (female) |
½ in. sanitary, 8.1 mm (0.32 in.) bore |
| Maximum membrane area Screen Suspended screen |
- 0.04 m2 (0.4 ft2) 0.02 m2 (0.2 ft2) |
- 0.37 m2 (4 ft2) 0.28 m2 (3 ft2) |
- 0.46 m2 (5 ft2) 0.37 m2 (4 ft2) |
| Nominal dimensions (Width x Length x Depth) |
12 x 23 6.6 cm (4½ x 9 x 2½ in.) |
9.4 x 24 x 19 cm (3¾ x 9¼ x 7½ in.) |
13 x 23 x 16 cm (5¼ x 9 x 6¼ in.) |
| Weight |
4 kg (8.75 lbs) |
8.6 kg (19 lbs) |
6.4 kg (14 lbs) |
| Maximum operating temperature |
50 °C |
80 °C |
80 °C |
| Maximum operating pressure |
5 bar (75 psi) |
6 bar (90 psi) |
6 bar (90 psi) |
|
Cassette Holder |
Centrasette LV Holder |
Centrasette P Holder |
Centrasette 5*, 5AT* Holder
|
| Feed and retentate ports |
¾ in. sanitary SS |
¾ in. sanitary PP |
1 in. sanitary SS |
| Filtrate port |
¾ in. sanitary SS |
¾ in. sanitary PP |
1 in. sanitary SS |
| Maximum membrane area(1) Screen Suspended screen |
- 2.0 m2 (22 ft2) 1.5 m2 (16 ft2) |
- 2.0 m2 (22 ft2) 1.5 m2 (16 ft2) |
- 5 m2 (54 ft2) 4 m2 (43 ft2) |
| Nominal dimensions (Width x Length x Depth) |
26 x 25 x 21 cm (10¼ x 10 x 8½ in.) |
30 x 20 x 34 cm (12 x 8 x 13½ in.) |
26 x 25 x 27 cm (10¼ x 10 x 10¾ in.) |
| Weight |
28 kg (62 lbs) |
25 kg (55 lbs) |
30 kg (66 lbs) |
| Maximum operating temperature |
80 °C |
50 °C |
80 °C |
| Maximum operating pressure |
6 bar (90 psi) |
5 bar (75 psi) |
6 bar (90 psi) |
| Cassette Holder |
Centrastak 100 Holder |
Centrastak 200 Holder |
Centrastak 300 Holder |
Centrastak 400 Holder
|
| Feed and retentate ports |
2 in. .sanitary |
2 in. .sanitary |
2 in. .sanitary | 2 in. .sanitary |
| Maximum membrane area Screen Suspended screen |
- 20 m2 (216 ft2) 15 m2 (161 ft2) |
- 40 m2 (430 ft2) 30 m2 (323 ft2) |
- 60 m2 (645 ft2) 45 m2 (484 ft2) |
- 60 m2 (645 ft2) 45 m2 (484 ft2) |
| Nominal dimensions (Width x Length x Depth) |
39 x 91 x 59 cm (15½ x 36 x 23¼ in.) |
39 x 91 x 59 cm (15½ x 36 x 37½ in.) |
39 x 91 x 107 cm (15½ x 36 x 42 in.) |
39 x 91 x 120 cm (15½ x 36 x 47½ in.) |
| Weight |
155 kg (340 lbs) |
255 kg (560 lbs) |
314 kg (690 lbs) |
409 kg (900 lbs) |
| Maximum operating temperature |
80 °C |
80 °C |
80 °C |
80 °C |
| Maximum operating pressure |
6 bar (90 psi) |
6 bar (90 psi) |
6 bar (90 psi) |
6 bar (90 psi) |
|
Cassette Holder |
Maximate Holder |
Maxisette 25 Holder |
Maxisette 50 Holder |
Maxisette 100 Holder
|
| Feed and retentate ports |
¾ in. sanitary |
2 in. sanitary |
2½ in. sanitary |
2½ in. sanitary |
| Filtrate port |
1½ in. sanitary |
1½ in. sanitary |
1½ in. sanitary |
1½ in. sanitary |
| Maximum membrane area(1) Screen Suspended screen |
- 1.1 m2 (12 ft2) 0.74 m2 (8 ft2) |
- 28 m2 (300 ft2) 28 m2 (300 ft2) |
- 56 m2 (600 ft2) 56 m2 (600 ft2) |
- 89 m2 (960 ft2) 56 m2 (600 ft2) |
| Nominal dimensions (Width x Length x Depth) |
16 x 44 x 22 cm (6¼ x 17½ x 8¾ in.) |
47 x 105 x 57 cm (18½ x 41½ x 22½ in.) |
47 x 105 x 97 cm (18½ x 41½ x 38 in.) |
47 x 105 x 117 cm (18½ x 41½ x 46 in.) |
| Weight |
13.3 kg (29.2 lbs) |
455 kg (1000 lbs) |
566 kg (1245 lbs) |
566 kg (1245 lbs) |
| Maximum operating temperature |
80 °C |
80 °C |
80 °C |
80 °C |
| maximum operating pressure |
6 bar (87 psi) | 6 bar (87 psi) |
6 bar (87 psi) |
6 bar (87 psi) |
|
Holder |
Centramate PE |
Centramate LV |
Centramate/Maximate |
Centrasette P |
Centrasette Maxisette
|
| Plates |
UHMW polyethylene |
316L stainless steel |
316L stainless steel |
Polypropylene |
316L stainless steel |
| Flow distribution manifold |
UHMW polyethylene |
316L stainless steel |
316L stainless steel |
Polypropylene |
316L stainless steel |
| Other components |
|
EPDM o-ring on SS threaded luer connector |
|
EPDM sanitary gaskets |
|
Product Summary
Designed for optimum performance and product recovery, Pall's TFF cassette holders are available in a variety of sizes to meet every application requirement. Applications developed on a small system using a Centramate or Maximate cassette can be easily scaled up, either by adding additional cassettes to the holder or by scaling into a larger cassette format and holder configuration with identical flow path
